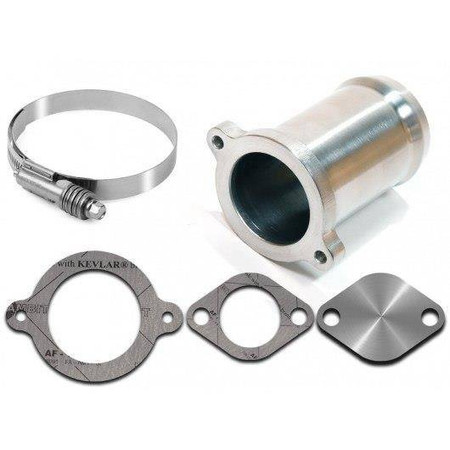

AT-FL-76 PLUG REPLACEMENT EGR FORD 2.0 2.2 2.4 TDCI
Professionally made stainless steel replacement for EGR exhaust gas recirculation valve. TIG welded plate and planned to ensure perfect adhesion to the intake manifold.
At the end of the race pipe, a collar has been made to prevent the cord from slipping.
In addition, the kit includes an exhaust manifold plug cut out of stainless steel and a seal for the plug.
Material: stainless steel.
dimensions:
Pipe diameter - 50.8 mm;
Total length - 85 mm
Benefits of using our EGR replacement:
turbo buffers faster at lower speed,
elimination of the problem of sticking with the carbon intake suction by damaged EGR
greater air flow
thanks to the use of stainless steel resistant to mechanical damage
high aesthetics of workmanship
COMPATIBILITY
FORD MONDEO III (B5Y) 2.0 16V TDDi / TDCi 85 kW 10.2001 - 03.2007
FORD MONDEO III (B5Y) 2.0 TDCi 96 kW 10.2001 - 03.2007
FORD MONDEO III (B5Y) 2.2 TDCi 114 kW 09.2004 - 03.2007
FORD MONDEO III Estate (BWY) 2.0 16V TDDi / TDCi 85 kW 10.2000 - 03.2007
FORD MONDEO III Estate (BWY) 2.0 TDCi 96 kW 10.2001 - 03.2007
FORD MONDEO III Estate (BWY) 2.2 TDCi 114 kW 09.2004 - 03.2007
FORD MONDEO III Saloon (B4Y) 2.0 16V TDDi / TDCi 85 kW 10.2000 - 03.2007
FORD MONDEO III Saloon (B4Y) 2.0 TDCi 96 kW 10.2001 - 03.2007
FORD MONDEO III Saloon (B4Y) 2.2 TDCi 114 kW 09.2004 - 03.2007
FORD TRANSIT Bus 2.4 TDCi 4x4 103 kW 11.2006 - 08.2014
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 101 kW 03.2004 - 05.2006
FORD TRANSIT MK-7 Box 2.4 TDCi 4x4 103 kW 11.2006 - 08.2014
FORD TRANSIT MK-7 Platform / Chassis 2.4 TDCi 4x4 103 kW 11.2006 - 08.2014
FORD TRANSIT Box (FA_ _) 2.4 TDCi 101 kW 03.2004 - 05.2006
FORD TRANSIT Platform / Chassis (FM_ _, FN_ _) 2.4 TDCi 101 kW 03.2004 - 05.2006
JAGUAR X-TYPE (CF1) 96 07.2003 - 11.2009 JAGUAR X-TYPE Estate 96 kW 02.2004 - 12.2009
CATALOG NUMBERS OF ORIGINAL VALVES
1220819
1333572
2S7Q9D475AC
2S7Q9D475AD
4S7 090475KC
724809070
7.24809.07.0
6NU010171041
6NU 010 171-041
OTHER VARIANTS OF THE OFFERED PART WERE COVERED IN THE CARS
BY PURCHASE, YOU WILL CONFIRM THAT THE PART FITS IN YOUR CAR
Replacement installation on models where the EGR valve has an electrical plug requires intervention in the control program. Without removing the valve programmatically, the assembly will cause the "CHECK ENGINE" engine error to appear
