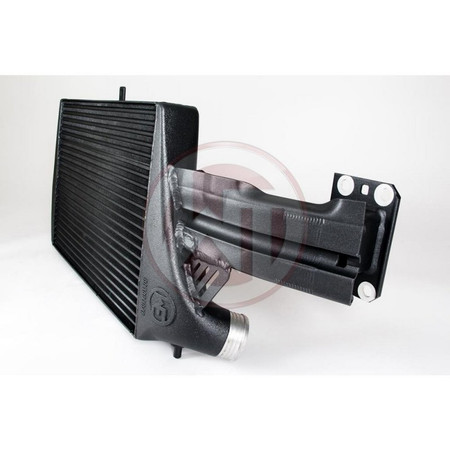

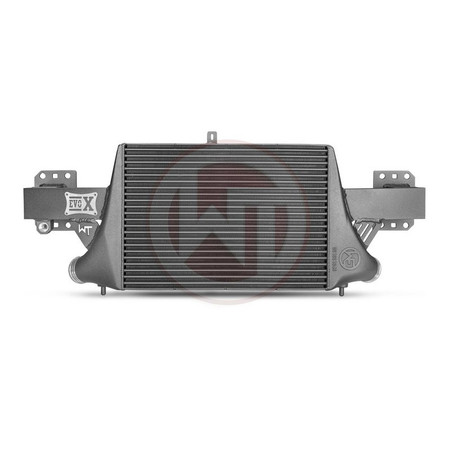

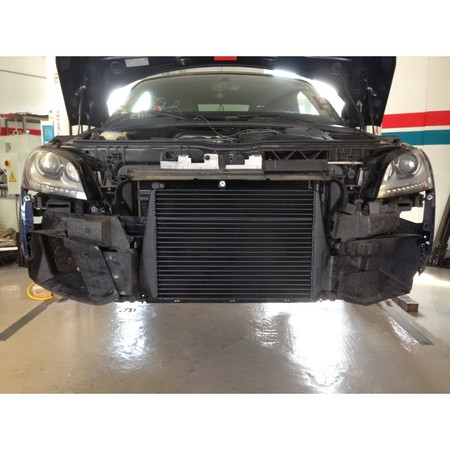

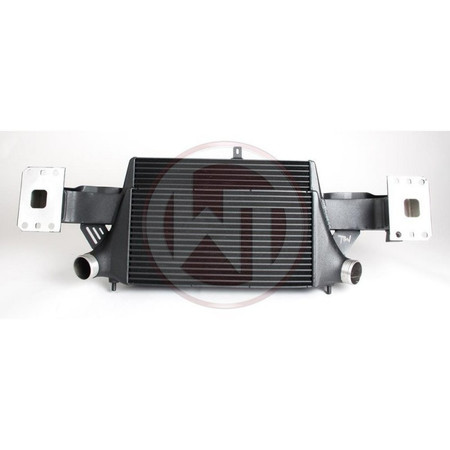

Intercooler Audi TTRS 8J 2.5 TFSI EVO3 600HP Wagner Tuning
Questions before you buy?
Get in touch with us — our specialists will guide you and help you choose the right part. We respond quickly and run our store with full reliability.
The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+. The size of the intercooler remains unchanged from the original version. Only the internal core design has been further optimized for the high power applications and guarantees optimal air flow and excellent cooling performance. For all power applications below the 600PS we recommend to use the standard version.

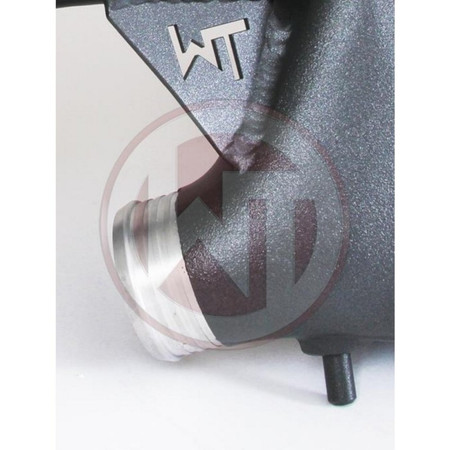

The high performance intercooler has the following core dimension (515mm x 367 [274] mm x 95mm) and thus offers a 120% larger cooling surface and 142% more charge air volume compared to the original intercooler. The newly developed Competition Core granted the adjacent components, for example watercooler, sufficient airflow and is also very light. The endtanks of the intercooler are made ??of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! On both sides the connection diameter is 68mm.
Advantages of the Wagner Tuning intercooler:
- improved cooling performance
- 120% larger inflow area
- 142% more charge air volume
- weight 18Kg
- flow-optimized
- less back pressure

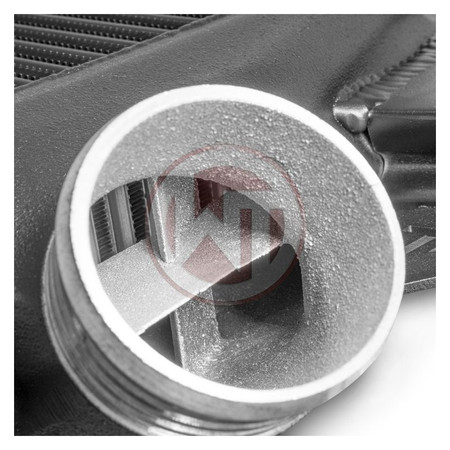

- Connection diameter 68mm on both sides
- Plug & Play
OEM intercooler: cooling Surface 856cm2 / charge air volume 6,8L
WT EVO 1 Performance: cooling surface 856cm2 / charge air volume 9,4L
WT EVO2 Competition: cooling surface 1391cm2 / charge air volume 13,2L
WT EVO3 Competition: cooling surface 1890cm2 / charge air volume 16,5L
packing list:
1 intercooler including crossmember
1 mounting material
1 set licenceplate holder
1 installation instruction
Comment:
only for racing
Type of warranty: manufacturer's warranty.
Warranty period: 24 months.
The manufacturer's warranty means that in the event of a defect or malfunction, the product will be repaired or replaced by an authorized service center. In most cases, proof of purchase (receipt or invoice) is required.
To submit a warranty claim, please contact our store via the warranty claim form. The product must be sent back to us at your own expense. If the claim is approved, we will refund the shipping costs upon presentation of proof of payment.
If you have any questions regarding the warranty conditions or the status of your claim, please contact our customer service department.
