Intercooler EVO2 BMW 3 Series E90/E91/E92/E93 335d – High-Performance Cooling by Wagner Tuning
Competition Intercooler EVO2 – The Ideal Upgrade for BMW 335d Tuning

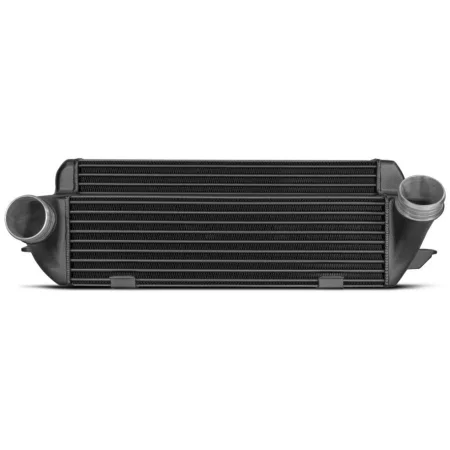

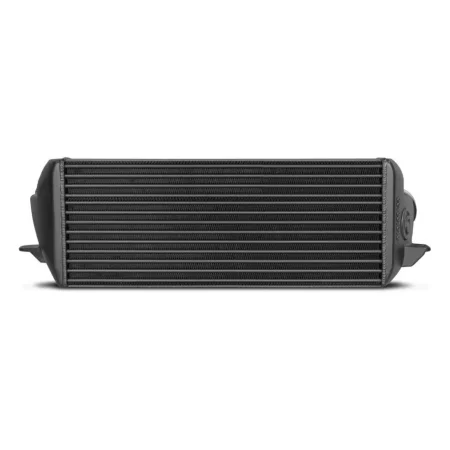

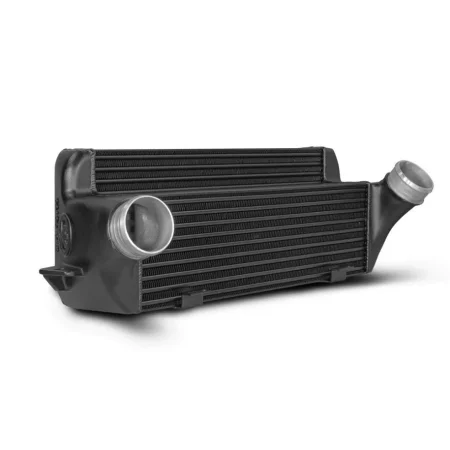

Intercooler EVO2 (part number 200001170) is a high-efficiency charge air cooler designed specifically for the BMW 3 Series with the 335d engine. It’s the perfect solution for drivers seeking better performance, lower backpressure, and uncompromised cooling quality.
Increased Cooling Surface and Air Volume
With core dimensions of 520 mm x 210 mm x 150 mm (volume 13.6 liters, stepped design), the intercooler offers:
- +65% more airflow surface area
- +87% more charge air volume
Compared to the OEM intercooler, this results in improved cooling and greater performance stability, even under heavy tuning.
Lightweight and Efficient Construction
Despite its larger size, the intercooler weighs only 7.4 kg. It uses high-quality tube-fin cores with internal turbulators and CFD-optimized cast aluminum end tanks, ensuring excellent airflow and high-pressure resistance.
Durability, Thermal Conductivity, and Low Backpressure
A special anti-corrosion coating with thermal conductivity properties enhances cooling performance and system longevity. The intercooler delivers maximum efficiency with minimal backpressure.
Upgraded Connections and Enhanced Flow
The inlet and outlet diameters have been increased to 70 mm, eliminating OEM clip connections. The kit includes 3 reinforced silicone hoses to ensure optimal sealing and airflow.
Easy Installation – Complete Upgrade Kit
This kit is fully ready for installation as a direct OEM replacement. * Due to its larger size, minor radiator support modifications are required (see installation manual). The intercooler is pressure tested up to 6 bar and delivers stable performance.
Comparison – EVO2 vs OEM
| Parameter | OEM Intercooler | Wagner Tuning EVO2 |
|---|---|---|
| Volume (V) | 7.29 L | 13.6 L |
| Surface Area (A) | 663 cm² | 1092 cm² |
Compatibility – Which Models Fit the EVO2?
- BMW 335d E90 / E91 / E92 / E93 (2005–2013)
* Vehicle modifications required – see installation instructions for details

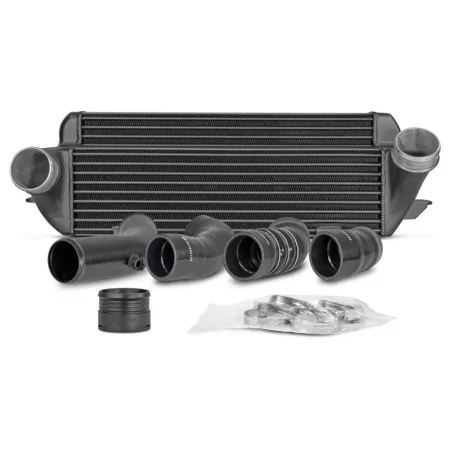

Kit Contents
- 1 x EVO2 intercooler (black, powder-coated)
- 3 x silicone hoses
- 1 x aluminum adapter (black anodized)
- 1 x aluminum charge pipe (black anodized)
- 1 x mounting hardware kit
- 1 x installation manual
Gallery – EVO Series Comparison
